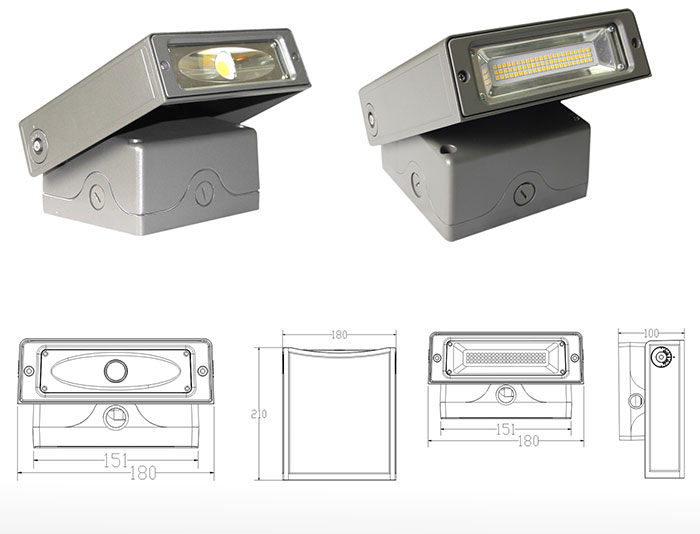

AWL1
. Die-cast housing, durable powder coat finish
. fixture head pivots fully up to 90°from mounting plane
. Hands-Free Mounting
. 120-277V Photocell as option
. 10KA Surge Protector as option
. Dimmable driver as option
| Order Number | AWL1-020W | AWL1-030W | AWL1-040W | AWL1-050W |
| LED Engine | CITIZEN COB | PHILIPS LUMILEDS | CITIZEN COB | PHILIPS LUMILEDS |
| Deliered Lumens(lm) | 2,200 | 3,600 | 4,400 | 6000 |
| Efficacy(lm/w) | 110 | 120 | 110 | 120 |
| CCT | 5000K(4000K Option) | |||
| Beam Angle | 140° | |||
| CRI | 70(80 As Option) | |||
| Base/Mount | Wall & Mount | |||
| Input/Voltage(V) | 120-277Vac / 347-480Vac | |||
| Power Factor | >0.9 | |||
| Operating Temperature | -30°F to 104°F | |||
| Certification | UL,CUL,DLC,LM-79,Lighting Facts | |||
| Environment | Wet Lo cation | |||
| Warranty | 5years | |||
