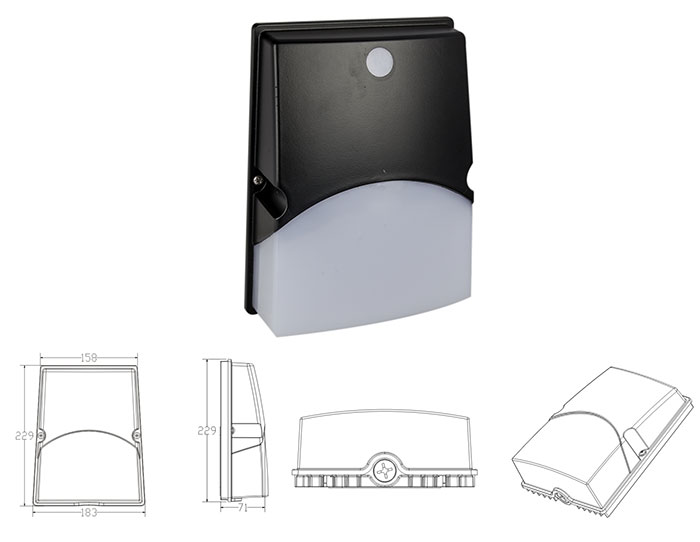

UL Wall Pack

AWDL


. Die cast aluminum base, durable powder coat finish
. Frosted or Clear UV stabilized polycarbonate Diffuser
. Philis Lumileds LED
's technology
. Wall,post,or bollard mount (ADA compliant)
. Easy installation with hands free mounting
. 120-277V Photocell as option
. 10ka Surge Protecdtor as option
. Dimmable driver as option


Order Number AWDL-150W AWDL-025W
LED Engine PHILIPS LUMILEDS PHILIPS LUMILEDS
Deliered Lumens(lm) 1,800 3,000
Efficacy(lm/w) 120 120
CCT 5000K(4000K Option)
Beam Angle 140°
CRI 70(80 As Option)
Base/Mount Wall- Mount
Input/Voltage(V) 120-277Vac / 347-480Vac
Power Factor >0.9
Operating Temperature -30°F to 104°F
Certification UL,CUL,DLC,LM-79,Lighting Facts
Environment Wet Location
Warranty 5years
